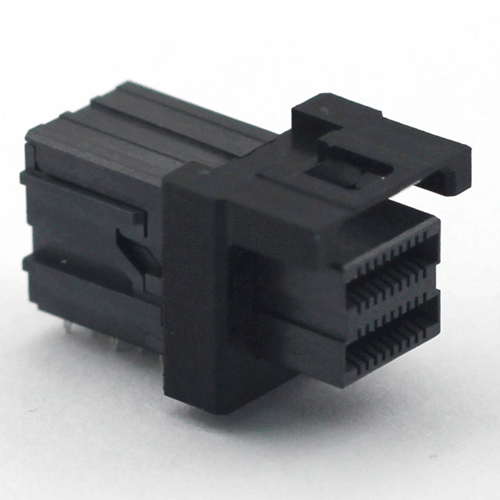

MINI SAS HD Internal Connector


MINI SAS HD系列产品技术参数
电气性能
额定电流Rated Current: 0.5 A
额定电压Rated Voltage: 30 V AC
绝缘电阻Insulation Resistance: 1000 MΩ Min
耐压强度Withstand Voltage:300 V DC OR AC PEAK 50 Hz 或 60 Hz /minute
接触电阻Contact Resistance: 70 mΩ Max.
机械性能
光模块插入transceiver insertion force/拔出力transceiver extraction force:40N Max/30N Max
耐久性Durability:40N Max/30N Max(每小时500次的速度重复插拔光模块100次)
光模块锁紧力transceiver retention force:90~170N
单PIN插入Press-fit force per PIN with PCB /拔出力Retention force per PIN with PCB : 30N Max/8N Min
整体压接力Total press-fit force with PCB :1300N Max
端子正向力Terminal positive force: 0.3N Min
使用寿命service life :100次插拔 Min.
环境性能
工作温度Operating Temperature: -40℃~+85℃
储存温度Storage Temperature: -55℃~+105℃   相对湿度<80%
储存时间Storage Time: 12个月

材料
塑壳Plastic Housing:LCP(V)PBT( )PA46( )PA66( )ABS( )PC( )
阻燃等级Flame retardent grade:UL94V-0(V ) UL94V-1( ) UL94V-2( ) UL94-HB( )
端子Insert moulding: 磷青铜, 镀镍后镀金
可选镀金厚度Gold plate available: Fu inch( ) G/F inch( ) 3u inch( ) 6u inch( )
                                 15u inch( ) 30u inch( ) 50u inch( ) 钯金( )

盐雾试验Salt spray test: ( )H
盐雾试验 G/F 3U 6U 15U 30U 50U
白铜 8H 24H 48H
白铜镀镍
连接器 NA
