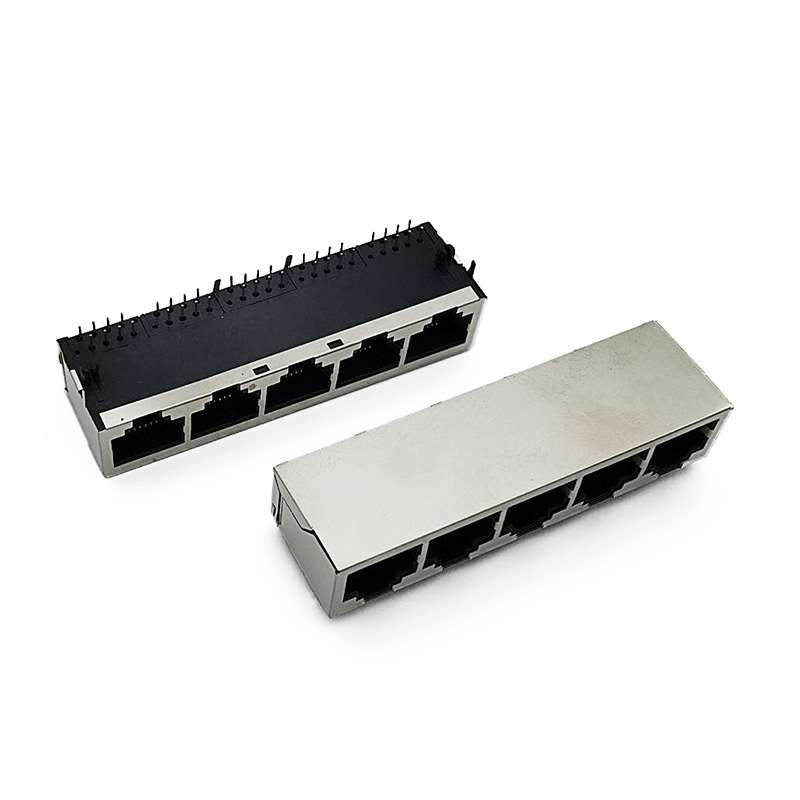

RJ45 Connectors, 5921 RJ45, Multiple Ports, 1 x 5, RJ Type Jacks & Plugs, Jack, Cat 5,Right Angle,Shielded


RJ45/RJ11 SERIES JACK PRODUCT SPECIFICATION


ELECTRICAL
CURRENT  RATING: 1.5 AMPS
VOLTAGE  RATING: 125 V AC
INSULATION  RESISTANCE: 1000 MΩ Min. @ 500V DC  EIA-364-21C
WITHSTAND  VOLTAGE: 1000 V AC OR 1500V DC RMS @ 0.5mA 50 Hz / 60 Hz 1 Minute  EIA-364-20B
CONTACT  RESISTANCE: 1XN ROUND PIN 35 mΩ Max.(  )1XN FLAT PIN 45 mΩMax.(  )
2XN ROUND PIN 40 mΩ Max.( )2XN FLAT PIN 50 mΩMax.( )  EIA-364-23

MECHANICAL

MATING/UNMATING  FORCE:22N / 2.27kg Max.  EIA-364-13B
RETENTION  STRENGTH:57.83N  Min.(   ) EIA-364-98  ;  30N Min. (   )
DURABILITY: 750  MATING/UNMATING  CYCLES  Min.

ENVIRONMENTAL

OPERATION  TEMPERATURE:-40℃~+85℃ (   )   -20℃~+70℃ (   )
STORAGE  TEMPERATURE:  -10℃~+40℃  RELATIVE HUMIDITY<80%

MATERIAL
HOUSING:PBT(   )PA46(   )PA66(   )ABS(   )PC(   ),(   ) , UL94V-0 OR UL94V-2
TERMINAL: DIAMETER  0.46mm(   ),THICKNESS  0.35mm(   ) PHOSPHOR  BRONZE,

SELECTIVE  GOLD  PLATING  OVER  NICKEL
GOLD  PLATING: Fu inch (   )  G/F inch(  )  3u inch(   )  6u inch(   )
15u inch(   ) 30u inch(   )  50u inch(   )
