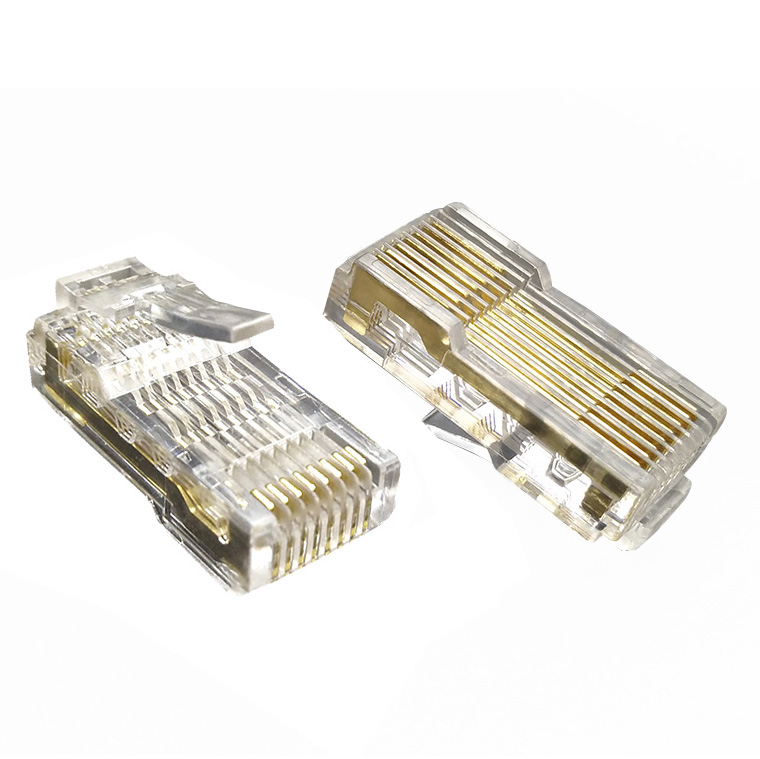

RJ45 Connectors, Modular Plug, Type Jacks and Plugs Suitable for frequency converter L26MM


PLUG PRODUCT SPECIFICATION

ELECTRICAL
CURRENT RATING:1.5 AMPS@25℃
VOLTAGE RATING:125 V AC
INSULATION RESISTANCE:1000 MΩMin.@500V DC EIA-364-21C
WITHSTAND VOLTAGE:1000 V AC RMS OR 1500 V DC @ 0.5mA 50 Hz/60 Hz 1 Minute EIA-364-20B
CONTACT RESISTANCE:40 mΩMax. EIA-364-23B

MECHANICAL
RETENTION STRENGTH:57.83N Min. EIA-364-98
DURABILITY:1000 MATING CYCLES Min.

ENVIRONMENTAL
OPERATION TEMPERATURE:-20℃~+70℃
STORAGE TEMPERATURE:-10℃~+40℃ RELATIVE HUMIDITY<80%

MATERIAL
HOUSING:PC ;
FLAMMABILITY CLASS :■UL94V-0 ■UL94V-1 ■UL94V-2 ■UL94-HB
TERMINAL:THICKNESS■0.35mm ■0.30mm,■PHOSPHOR BRONZE ■BRASS
SELECTIVE GOLD PLATING OVER NICKEL
GOLD PLATING:■G/F inch ■3u inch ■6u inch ■15u inch ■30u inch ■50u inch
